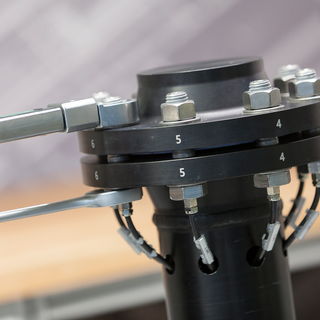

The amtec training flange is used for the measurement and visualization of bolt forces during the tightening process under real mounting conditions. The pair of flanges (DN100/PN40) is assembled with eight screws (M20), all of which serve as force sensors. The user-friendly amtec software, developed especially for demonstration purposes, shows the bolt forces in various graphics. The device clarifies the following parameters which are relevant for the quality of a proper flange connection:

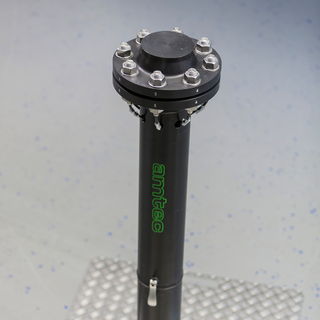

The training flange is mobile and can be disassembled without tools, stored and transported in a practical aluminum case. The weight-optimized design makes the entire device comparatively light, which means that there are no obstacles to conducting demonstrations on the go.

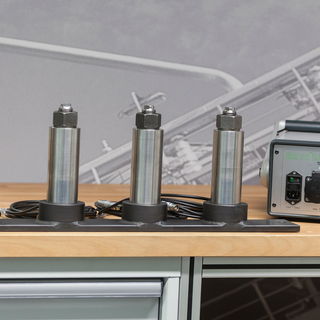

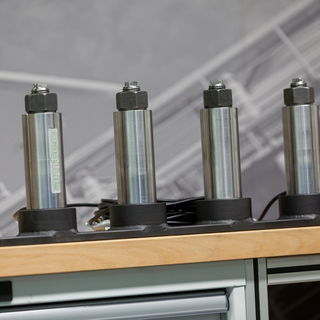

The device is used to measure bolt forces on four identical anti-fatigue bolts (M27). The display of the forces in the form of a bar chart illustrates the significant differences in the axial tensile forces in the bolts very well. Thus e.g. the following phenomena are shown on the device:

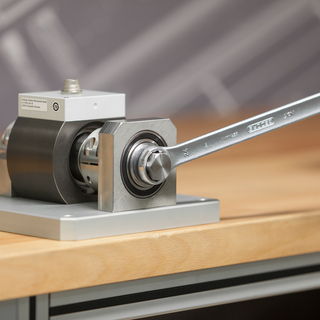

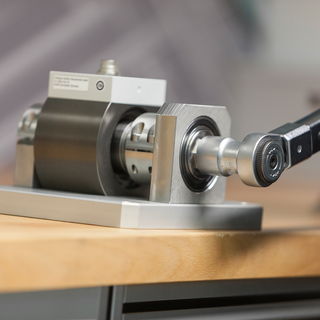

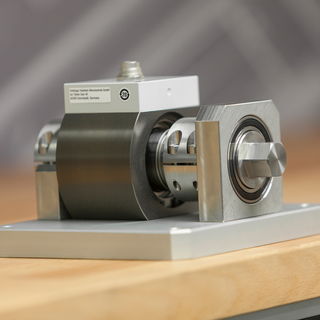

With the training device TEMEStq.ctrl, the torque can be precisely recorded and visualized during assembly. This device can bused to show e.g. the following facts:
Two workstations can be equipped with the test assessment equipment from amtec for the acceptance of the practical test in training courses according to EN 1591-4. The entire equipment can be neatly stowed away and transported in a practical aluminum transport box with wheels. In addition to various flanges, the necessary screws, nuts and tools for the test are also included.
